BUILDPRO® Alpha 5/8" Welding Table 8' X 4' TA5-9648Q-A1

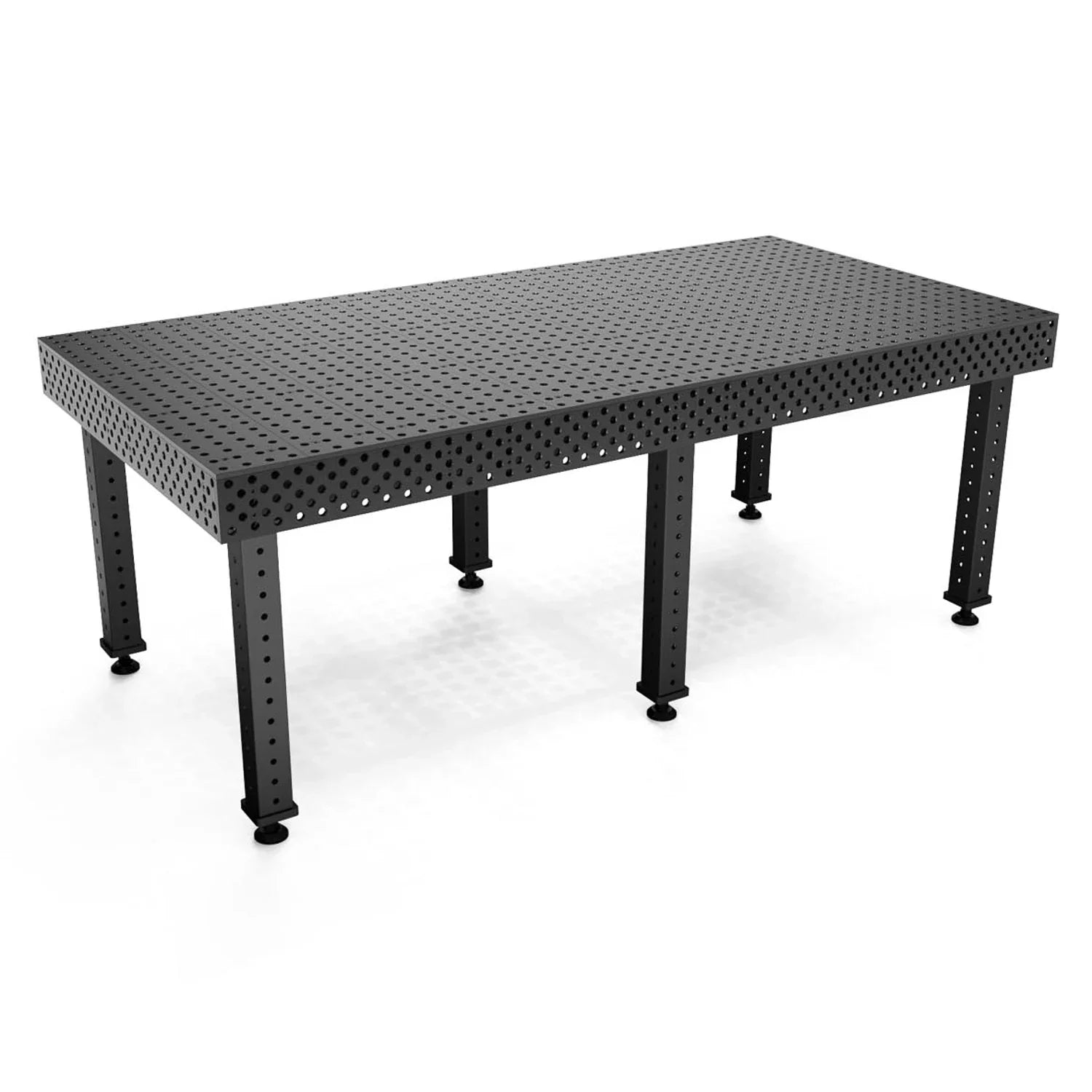

Genuine BuildPro® Alpha 5/8" 8' X 4' Welding Table TA5-9648Q-A1 is a 36.3 inch high heavy duty welding table, complete with side plates, that is equipped with 5/8" diameter boreholes for maximum versatility and accuracy. The Alpha 5/8 table sets the standard for flatness, squareness, and dimensional accuracy. All BuildPro welding tables come with precision machined, self-locating steel plates and reversible top plates; allowing each table plate to be removed and flipped 180 degrees to expose a new working surface. This five-sided table features a 5-1/2" side plate on all four sides. When combined with the top plate, total side height is 6 inches. Side plates feature an extended 5 borehole pattern for even more precision and adjustability. Heavy duty legs include boreholes and leveling feet. Each leg holds up to 1,500 lbs. per leg.



Features

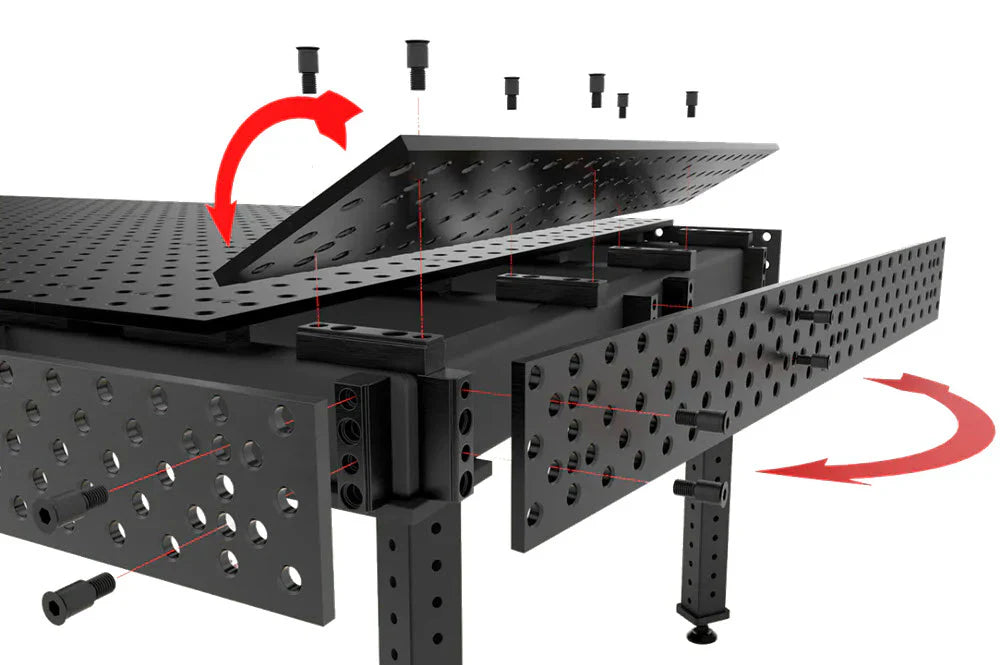

• Reversible Self-Locating Top and Side Plates allows each table plate to be removed and flipped 180 degrees to expose a new working surface.
• Nitrided (Heat-Treated) Tabletop is weld spatter, rust and scratch resistant.
• CNC Hole Pattern accurately position parts in CNC precision bored 5/8 dia. holes in 2 x 2 spacing pattern.
• Heavy Duty Leveling Feet ensure proper leveling of the table on uneven surfaces.
• Side Plates Feature an extended 5 borehole pattern for added precision and adjustability.
• Compatible with 5/8" fixturing elements compatible with all MAX Clamps, Components, and Modular Fixturing Kits EXCEPT Sliding Channel Clamps, Sliding Channel Bases, Slot filler Kit and T-Slot Adapter.
