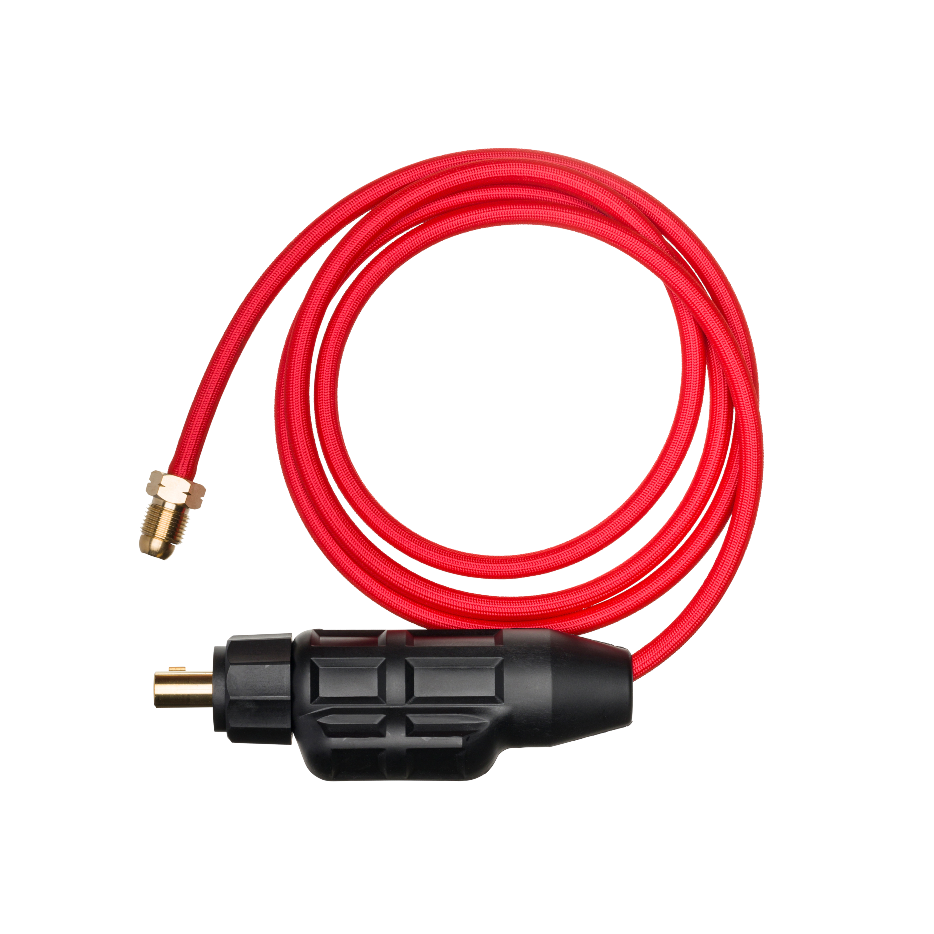

CK Worldwide DINSE 35 Safe-Loc™ Connector – Water-Cooled (SLWHAT-35)

The CK Worldwide SLWHAT-35 Safe-Loc™ DINSE Connector is the professional solution for connecting water-cooled TIG torches to welding machines equipped with a DINSE 35 (12.8mm / 1/2") output. Designed for demanding fabrication and industrial environments, the Safe-Loc™ system provides a secure electrical connection while neatly accommodating your power, water supply, and water return lines in one robust assembly.

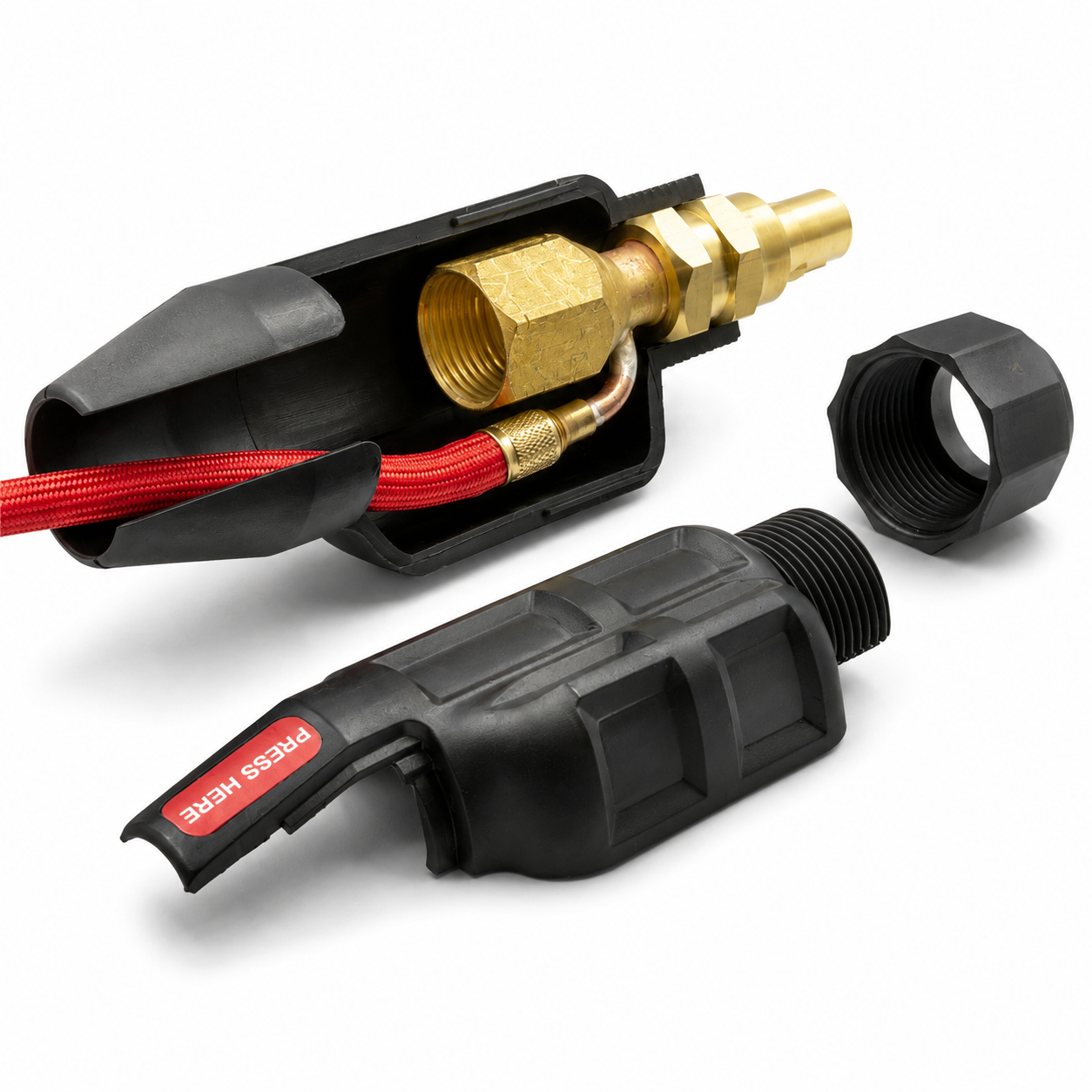

Featuring CK Worldwide's exclusive Safe-Loc™ poly-resin clamshell housing, the connector fully insulates the electrical connection while allowing quick access for installation and servicing. Built for non gas-through DINSE machines, the SLWHAT-35 is ideal for replacing worn connectors or building premium custom water-cooled TIG torch leads.

If you're running a larger TIG welder with a 35 Series DINSE socket, this connector provides the reliability and durability trusted by professional welders worldwide.

Features

• Genuine CK Worldwide Safe-Loc™ connector
• Standard DINSE 35 (12.8mm / 1/2") connection
• Designed specifically for water-cooled TIG torches
• Suitable for non gas-through DINSE welding machines
• Accommodates power, water in, and water return lines
• Heavy-duty poly-resin clamshell housing
• Fully insulated electrical connection
• Easy to install and service
• Built for professional fabrication and industrial welding

Specifications

• Part Number: SLWHAT-35
• Connection Type: DINSE 35
• Connector Diameter: 12.8mm (1/2")
• Cooling Type: Water Cooled
• Machine Compatibility: Non Gas-Through DINSE
• Housing: Safe-Loc™ Poly-Resin Clamshell
• Brand: CK Worldwide

Compatible CK Worldwide Torch Models

Compatible with a wide range of CK Worldwide water-cooled TIG torches, including:

• CK18
• CK20
• CK24W
• CK25
• CK180
• CK200
• TL18
• CKT200
• CK230
• CK300
• CK510
• CKM230
• CKM350
• FL230
• FL250
• MR140
• MT400
• MT500

Compatible Welding Machines

The DINSE 35 (12.8mm) connection is commonly found on medium to large TIG welders sold throughout Australia, including models such as:

• Unimig Razor TIG 320 AC/DC
• Unimig Razor TIG 400 AC/DC
• Miller Dynasty 200
• Miller Dynasty 300
• Miller Syncrowave 250DX
• Lincoln Invertec V200-T
• Lincoln Invertec V250-S
• Lincoln Invertec V350-PRO
• Thermal Arc Fabricator 211i
• Thermal Arc Fabricator 252i
• Thermal Arc ArcMaster 185 AC/DC
• Cigweld Transmig 255i (TIG setup with DINSE output)
• Cigweld WeldSkill 250 AC/DC (selected models)

Please Note: Always confirm your machine uses a DINSE 35 (12.8mm / 1/2") connector before ordering. Smaller TIG welders often use a DINSE 25 (9.5mm / 3/8") connection instead. This connector is designed for non gas-through DINSE machines with separate gas and water connections.

Perfect For

• Water-cooled TIG torch installations
• Replacing worn DINSE connectors
• Building custom TIG torch cable assemblies
• Heavy fabrication workshops
• Industrial and production TIG welding
• High-amperage welding applications

The CK Worldwide SLWHAT-35 Safe-Loc™ DINSE Connector delivers the durability, safety, and reliability demanded by professional welders. Purpose-built for water-cooled TIG systems with DINSE 35 outputs, it's the premium choice for keeping your welding setup secure and performing at its best.
