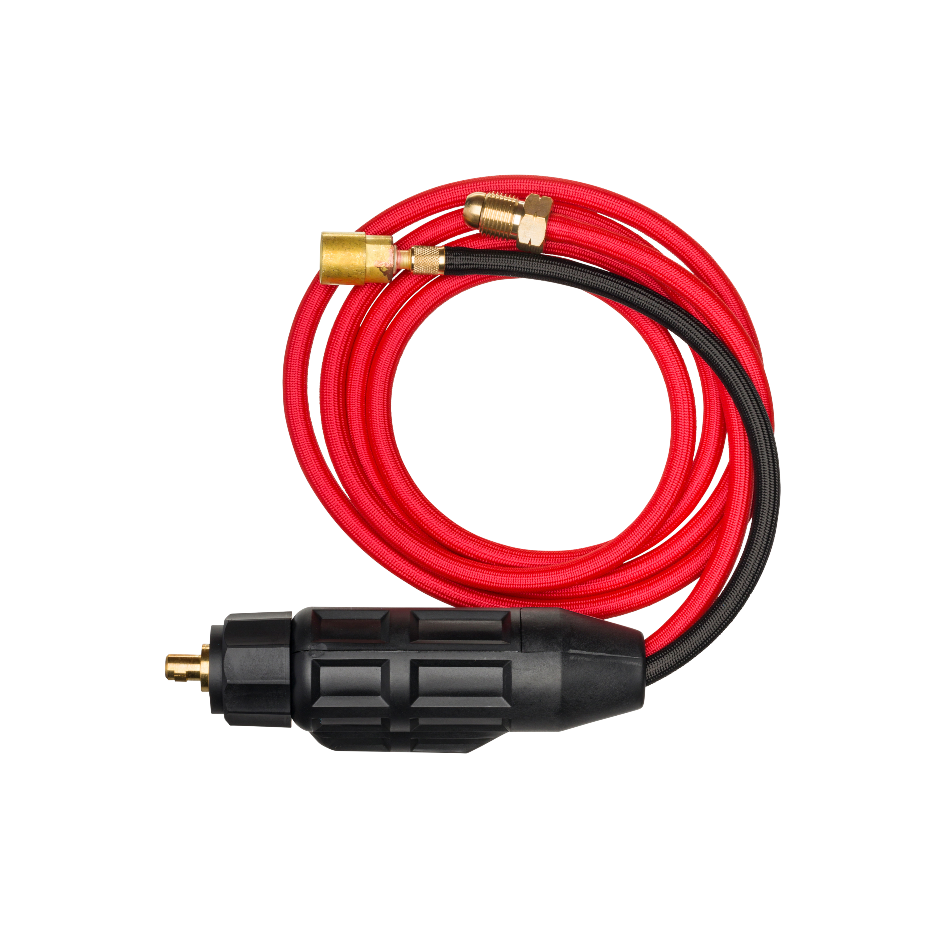

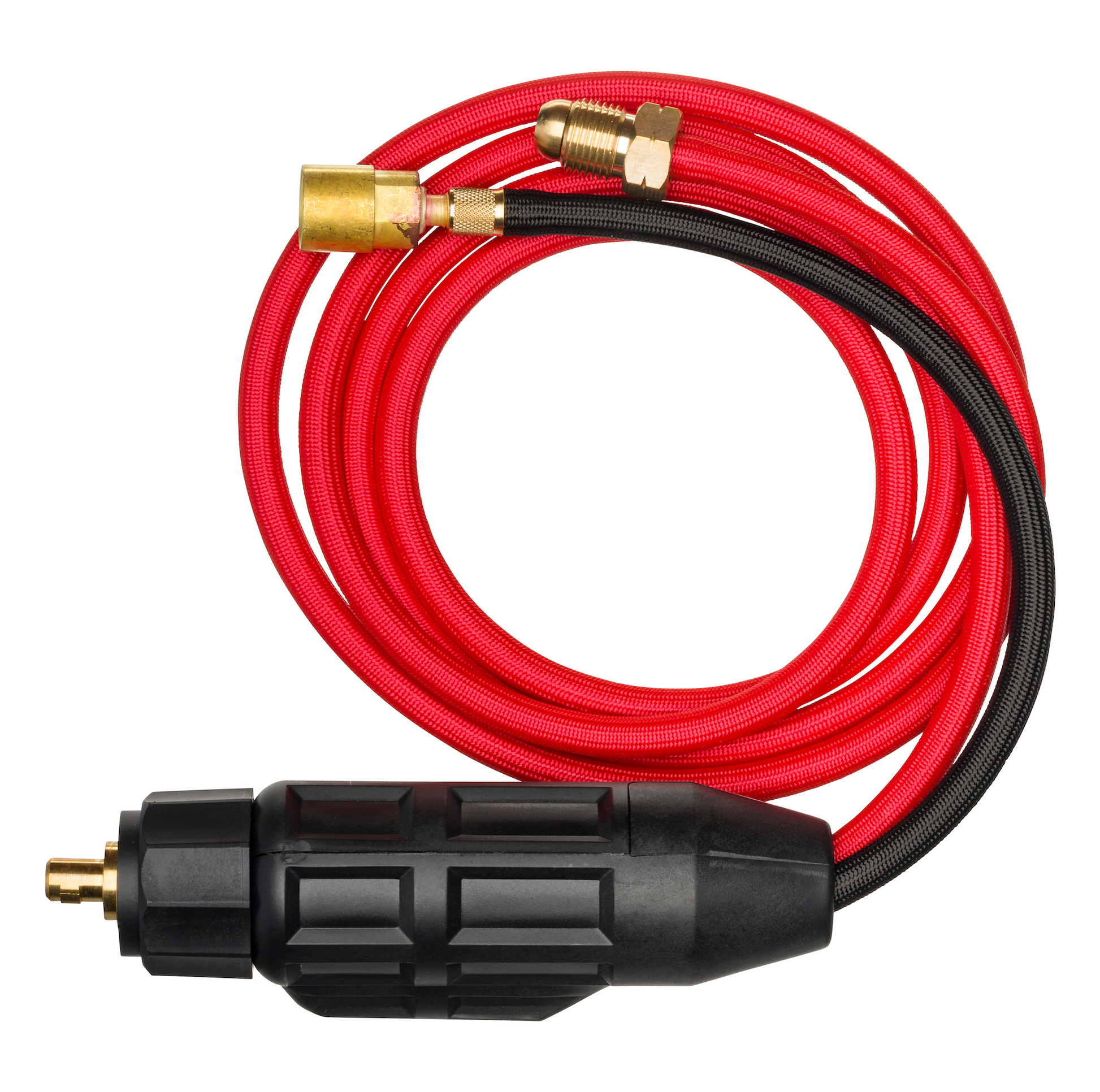

CK Worldwide DINSE 25 Gas-Through Safe-Loc™ Connector – Water-Cooled (SLWHAT-25M)

The CK Worldwide SLWHAT-25M Safe-Loc™ DINSE Connector is designed for water-cooled TIG torches used with gas-through DINSE welding machines. Combining your power connection and shielding gas supply through the DINSE connector, it provides a clean, professional installation while maintaining separate water supply and return lines.

Unlike standard non gas-through connectors, the SLWHAT-25M is specifically engineered for machines where the shielding gas is delivered through the DINSE output socket. The integrated Safe-Loc™ design provides a secure electrical connection with a durable poly-resin clamshell housing that protects internal connections while making installation and servicing simple.

Ideal for replacing worn connectors or building a premium water-cooled TIG torch assembly, the SLWHAT-25M is compatible with a wide range of CK Worldwide water-cooled torches.

Features

• Genuine CK Worldwide Safe-Loc™ connector
• DINSE 25M (9.5mm / 3/8") Gas-Through connection
• Designed specifically for water-cooled TIG torches
• For gas-through DINSE welding machines
• Integrated gas passage through the DINSE connector
• Separate water supply and return connections
• Heavy-duty poly-resin Safe-Loc™ housing
• Easy to install and service
• Professional-grade construction for workshop and industrial use

Specifications

• Part Number: SLWHAT-25M
• Connection Type: DINSE 25M Gas-Through
• Connector Diameter: 9.5mm (3/8")
• Cooling Type: Water Cooled
• Machine Compatibility: Gas-Through DINSE Machines
• Gas Supply: Through the DINSE connector
• Housing: Safe-Loc™ Poly-Resin Clamshell
• Brand: CK Worldwide

Compatible CK Worldwide Torch Models

Compatible with genuine CK Worldwide water-cooled TIG torches including:

• CK18
• CK20
• CK24W
• CK25
• CK180
• CK200
• TL18
• CKT200
• CK230
• CK300
• CK510
• CKM230
• CKM350
• FL230
• FL250
• MR140
• MT400
• MT500

Compatible Welding Machines (Australia)

The DINSE 25M Gas-Through connector is commonly used on compact inverter TIG welders with an integrated gas-through DINSE connection, including selected models such as:

• Everlast PowerTIG 200DV
• Everlast PowerTIG 255EXT
• AHP AlphaTIG 200X
• Jasic TIG 200P AC/DC (gas-through versions)
• Riland TIG 200 AC/DC (selected models)
• YesWelder TIG-250P AC/DC
• Various imported inverter TIG welders fitted with a 9.5mm (DINSE 25) gas-through socket

Please Note: This connector is only suitable for gas-through DINSE machines, where the shielding gas passes through the DINSE connector itself. It will not fit standard non gas-through DINSE machines that use a separate gas hose connection. Always check your machine's front panel or owner's manual before ordering.

Perfect For

• Water-cooled TIG torch installations
• Replacing worn gas-through DINSE connectors
• Custom water-cooled TIG torch cable assemblies
• Professional fabrication workshops
• Motorsport fabrication
• Precision aluminium and stainless TIG welding

The CK Worldwide SLWHAT-25M Gas-Through Safe-Loc™ Connector is the premium choice for welders using gas-through DINSE TIG machines. Built to CK Worldwide's renowned standards, it delivers a secure electrical connection, reliable gas flow, and the durability demanded by professional fabricators every day.
