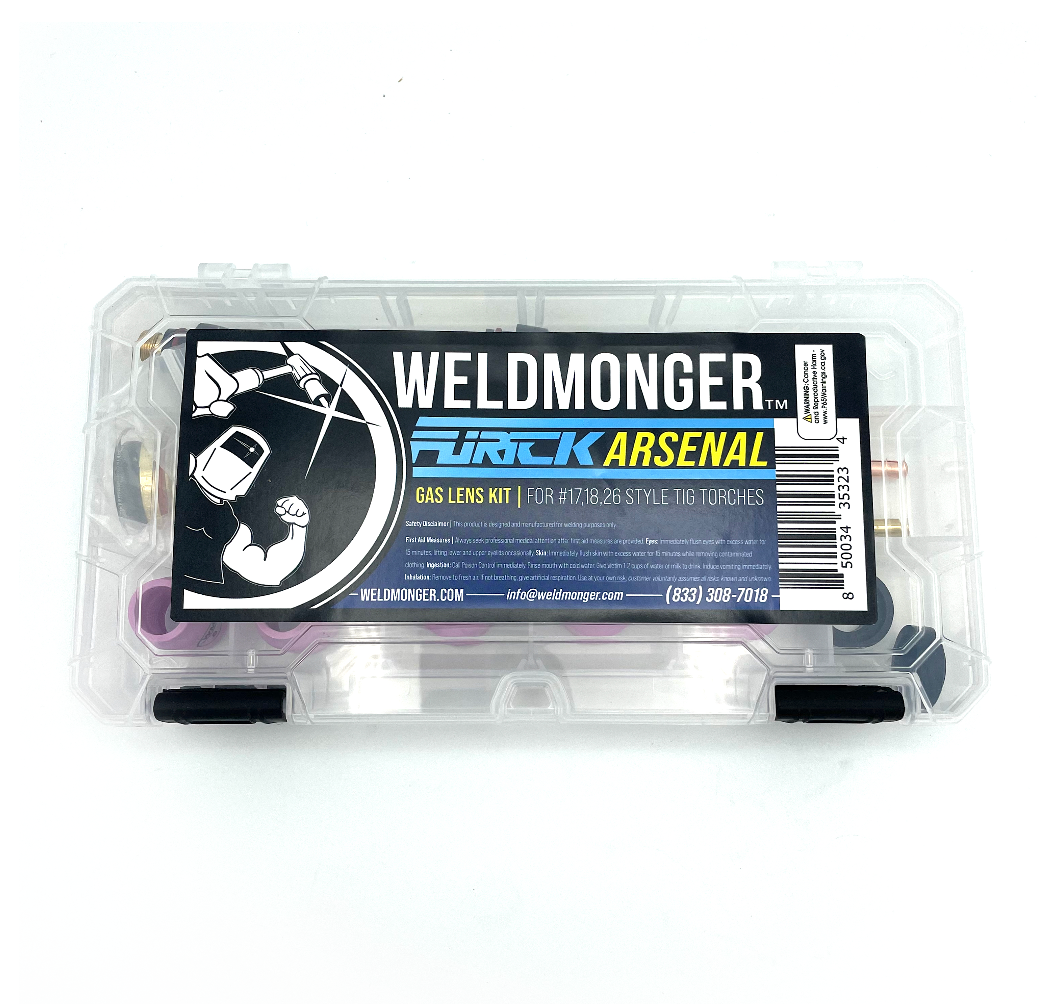

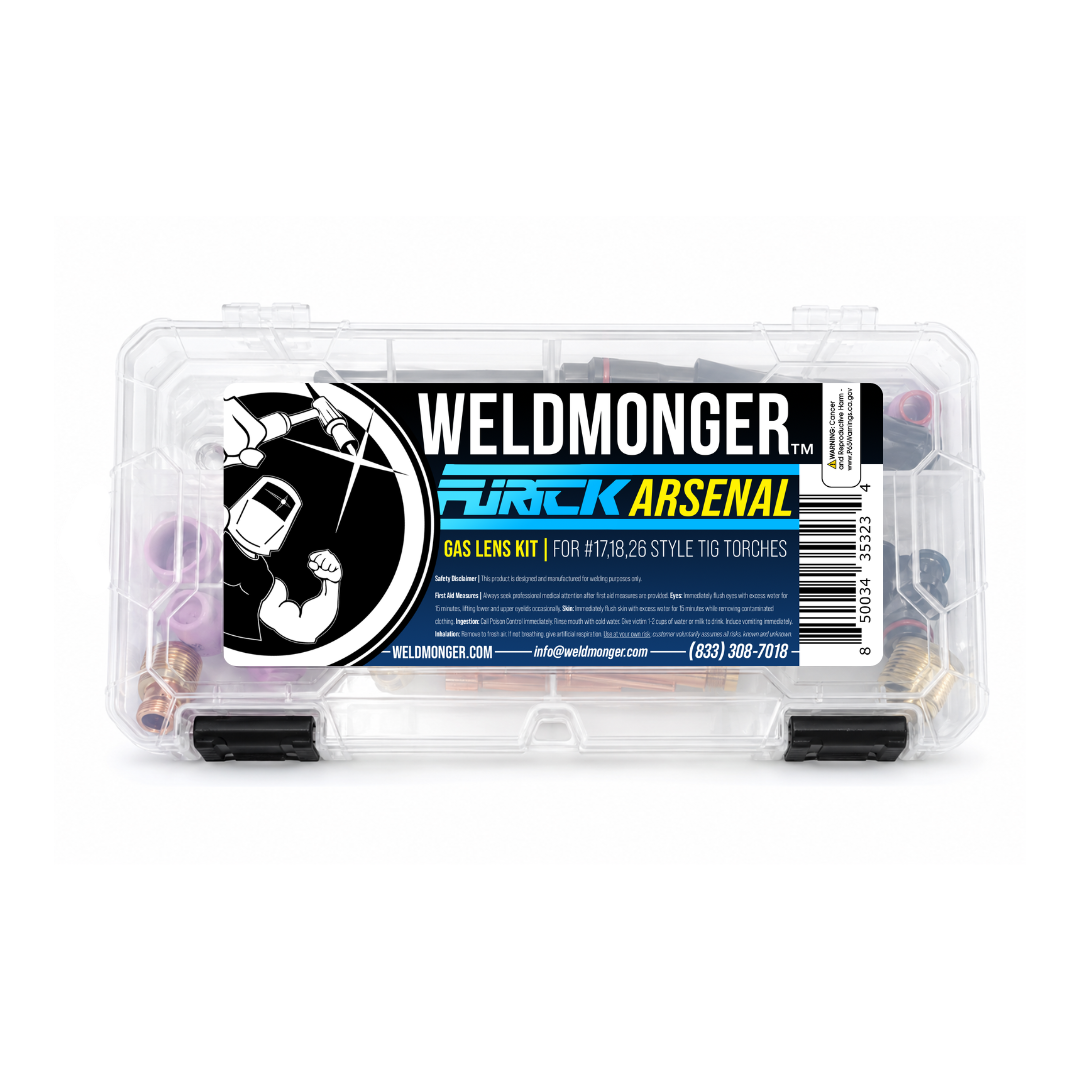

Weldmonger® Furick TIG Arsenal Kit For #17, 18, 26 Torches

The Most Popular Furick Cup Kit We Offer

If you're looking for a complete TIG cup setup that covers everything from mild steel and 4130 chromoly through to stainless steel, titanium, Inconel and other superalloys, this is the kit.

We've combined some of Jody Collier's favourite Furick cups with all the required gas lens components, collets, insulators and back caps to create a versatile package that fits #17, #18 and #26 style TIG torches.

Whether you're fabricating race car components, welding stainless pipe, building roll cages or tackling titanium projects, this kit gives you a cup for almost every application.

Why Furick Cups?

One of the reasons Furick cups have developed such a strong following among professional welders is the amount of testing that goes into every design.

As Jody puts it:

"Michael Furick rigorously tests his cups before releasing them. Being a motorsports fabricator and highly skilled welder himself, he understands exactly what welders need in real-world applications."

Included in This Kit

#8 Furick Pro Clear Cup

One of Jody's go-to cups for everyday TIG welding.

The clear design improves visibility when welding into corners, tubes and restricted areas, while still providing excellent gas coverage for both AC and DC applications.

Features:

• Outstanding visibility
• Excellent all-round cup size
• Suitable for steel, stainless and aluminium
• Uses the supplied O-ring gas lens system

Furick Jazzy 10 Ceramic Cup

The Jazzy 10 is designed for longer tungsten stick-out while maintaining excellent shielding gas coverage.

Ideal for:

• 4130 chromoly
• Stainless steel
• Inconel alloys
• Tight-access welds

Furick Ceramic 12 Cup

Built on the same proven design as the Jazzy 10 but with a larger shielding gas envelope.

Ideal for:

• Chromoly fabrication
• Stainless steel welding
• Inconel and superalloys
• Light titanium applications

Furick BBWSG-19 Cup

Designed for maximum shielding coverage.

The threaded brass insert and large gas coverage area make this an excellent choice for:

• Titanium welding
• Aerospace applications
• Motorsport fabrication
• Inconel and high-performance superalloys

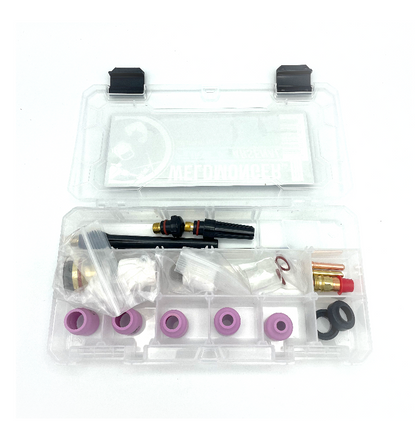

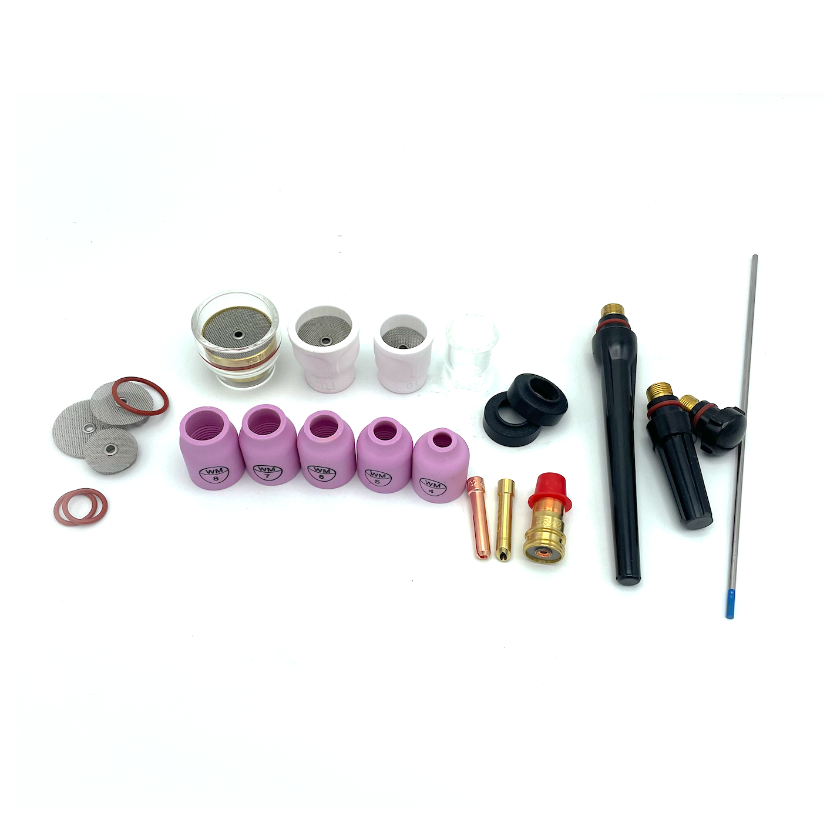

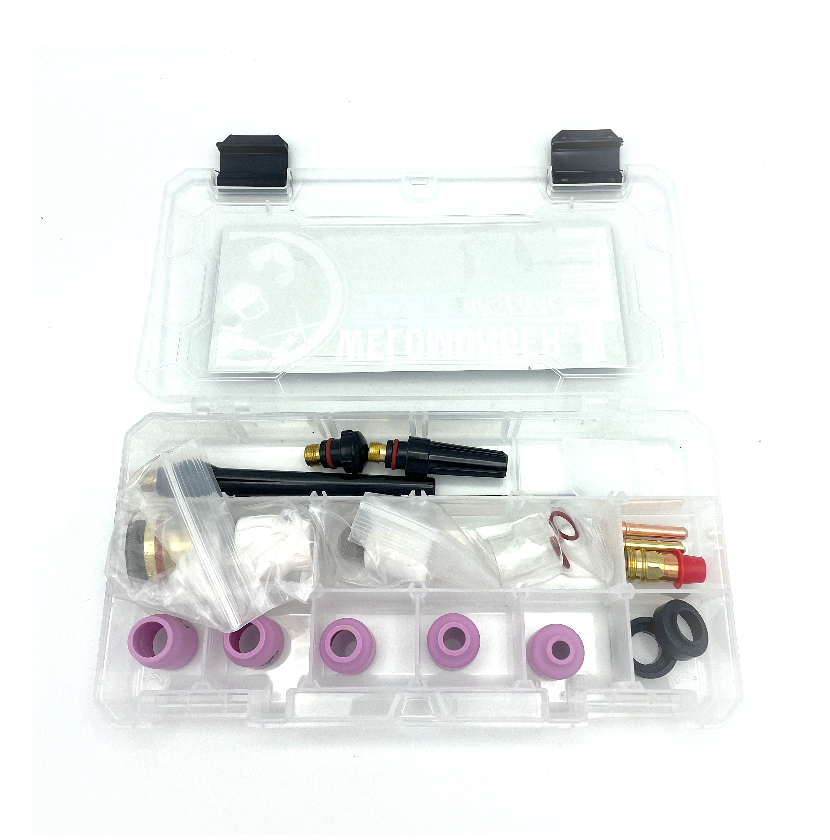

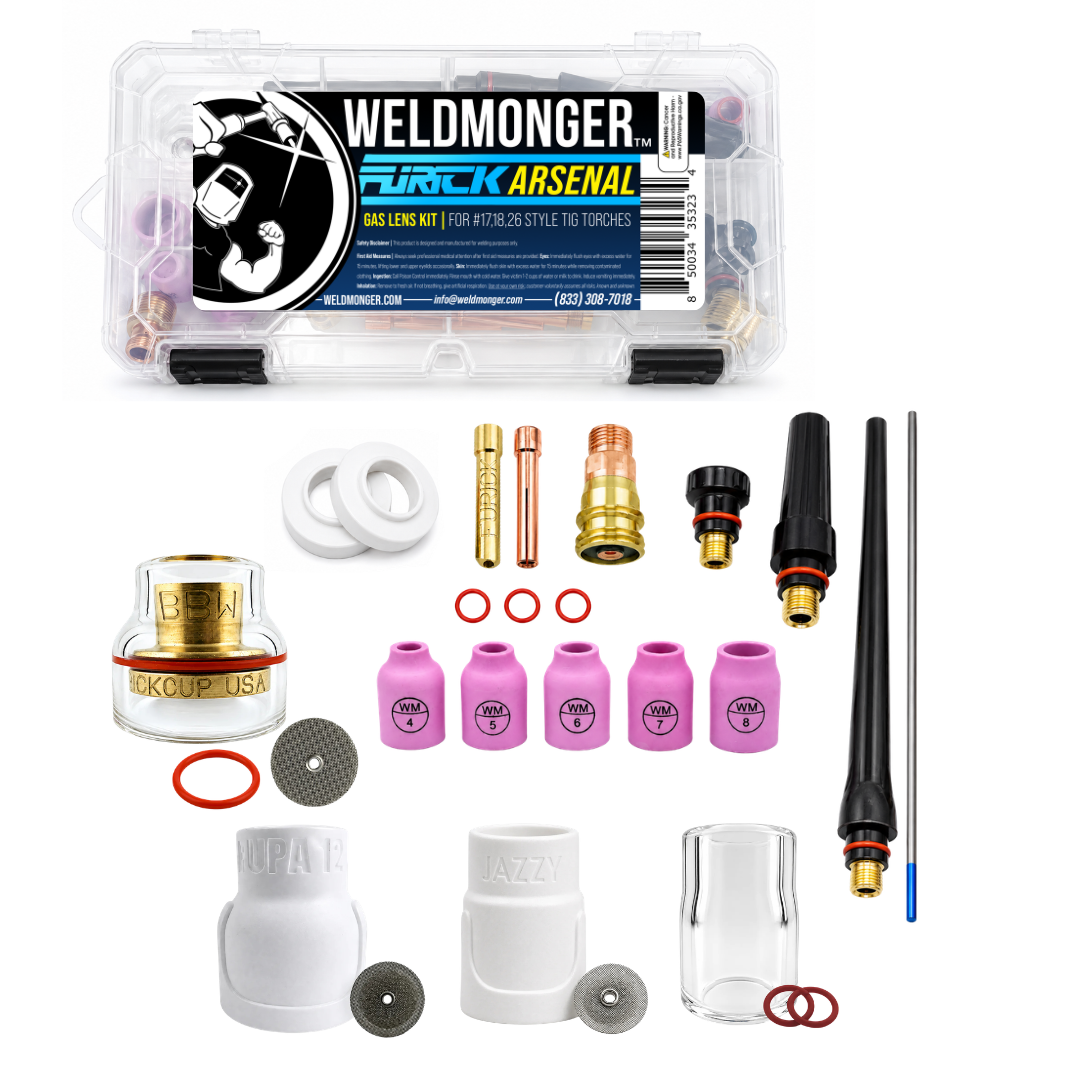

Kit Contents

Furick Cups

• 1 x #8 Pro Clear Cup
• 1 x Jazzy 10 Ceramic Cup
• 1 x Ceramic 12 Cup
• 1 x BBWSG-19 Cup

Stubby Gas Lens Components

• 1 x Furick 3/32" (2.4mm) Gas Lens Collet Body
• 1 x 3/32" (2.4mm) Slit Collet
• 1 x Furick 3/32" (2.4mm) Wedge Collet
• 1 x CK Insulator
• 1 x Non-CK Style Insulator

Back Caps

• 1 x Small Back Cap
• 1 x Medium Back Cap
• 1 x Large Back Cap

Additional Consumables

• 1 x 3/32" (2.4mm) Weldmonger Tungsten Electrode

Weldmonger Stubby Alumina Cups

• #4 Cup
• #5 Cup
• #6 Cup
• #7 Cup
• #8 Cup

Important Compatibility Information

This kit is designed specifically for:

3 Series Torches (#17 / #18 / #26)

Compatible with many popular models including:

17, 18, 26, 150, 210, 300, 510, Trimline, FL3L, CKM350, CWHTL300, CWH350, WCM350 and equivalent torches from Weldcraft®, Lincoln®, WeldTec® and Profax®.

Please note: This kit only includes a 3/32" (2.4mm) setup.

Using a #9 or #20 Torch?

This kit will not fit 2 Series torches.

If you have a #9 or #20 style TIG torch, you'll need the Furick Kit designed specifically for 2 Series torches.

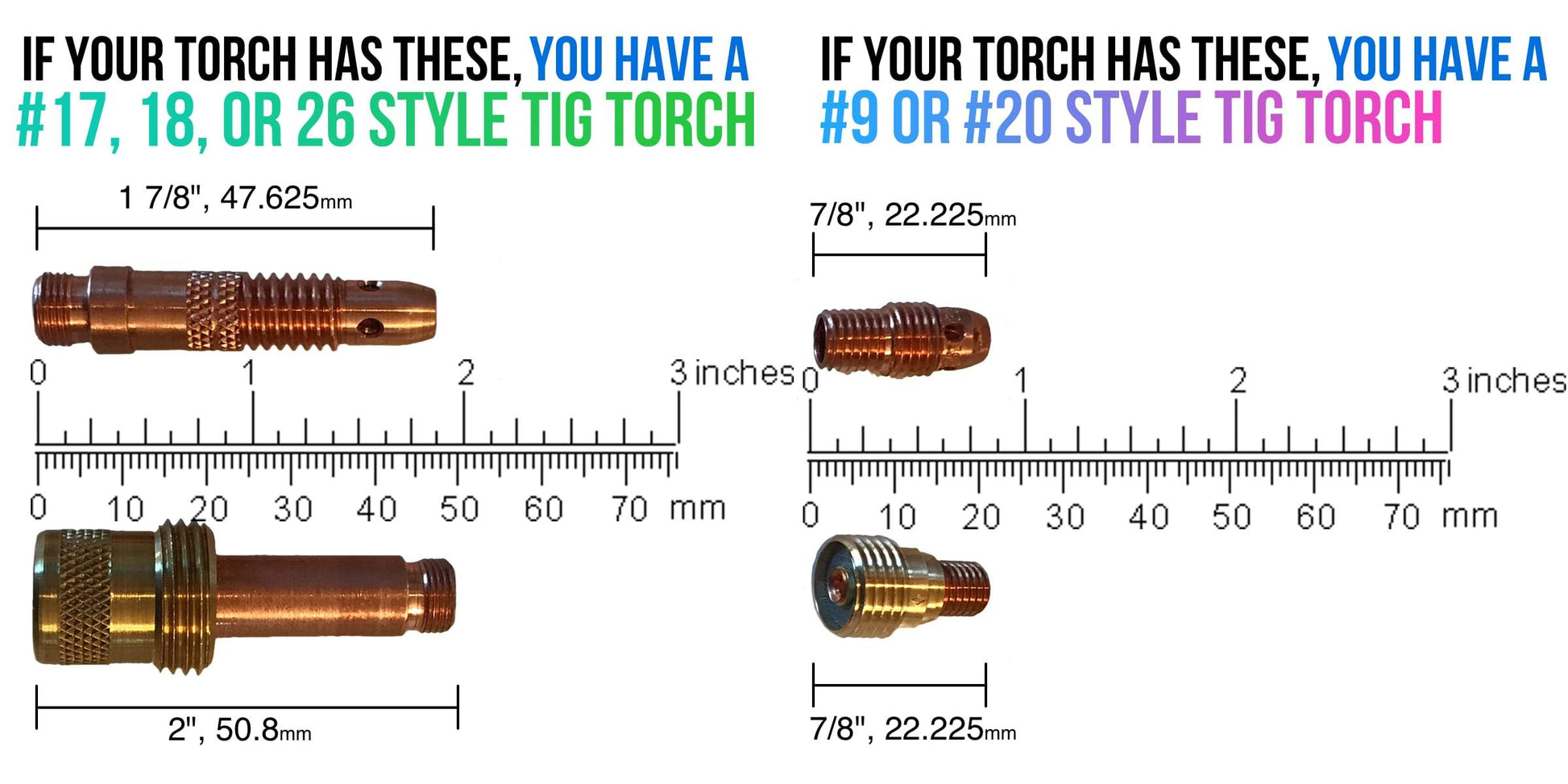

What Torch Series Do I Have?

2 Series (#9 / #20)

Common torch models include:

9, 20, 100, 110, 130, 200, 230FL2L, CKM230, CWH230, WCM230 and similar torches from Weldcraft®, Lincoln®, WeldTec® and Profax®.

3 Series (#17 / #18 / #26)

Common torch models include:

17, 18, 26, 150, 210, 300, 510, Trimline, FL3L, CKM350, CWHTL300, CWH350, WCM350 and similar torches from Weldcraft®, Lincoln®, WeldTec® and Profax®.

Not sure which torch you have? Contact the Weldmonger Australia team and we'll help you choose the correct consumables.
