Weldmonger® Gas Lens Kit 9,20 style torches

Upgrade your TIG welding setup with a premium Gas Lens Kit designed for all #9 and #20 style TIG torches.

If you weld stainless steel, chromoly, Inconel, Hastelloy, or any material where shielding gas coverage matters, a gas lens is one of the best upgrades you can make.

Why Use a Gas Lens?

A gas lens improves argon flow by diffusing the gas through multiple layers of fine mesh screen. This creates a larger, smoother shielding gas envelope around the weld puddle and tungsten.

The result?

• Cleaner, brighter welds with less oxidation
• Improved shielding on stainless steel and exotic alloys
• Better weld appearance and colour
• Increased tungsten stick-out for hard-to-reach joints
• More stable arc characteristics

Reach Tight Areas with Confidence

Unlike standard collet bodies, a gas lens allows you to extend your tungsten significantly further while maintaining excellent gas coverage.

This is especially useful when welding:

• 4130 chromoly tube clusters
• Stainless handrail mitres
• Marine fittings and stanchions
• Pipe joints and socket welds
• Tight corners and restricted access areas
• Inconel, Hastelloy and other high-performance alloys

When access is limited, the ability to extend your tungsten while maintaining proper shielding can make all the difference.

Suitable for #9 and #20 Series Torches

This kit fits most #9 and #20 style TIG torches, including many models from Weldcraft®, CK Worldwide®, Lincoln®, WeldTec®, Profax® and other compatible brands.

The kit includes everything needed for 1.6mm, 2.4mm and 3.2mm tungsten setups.

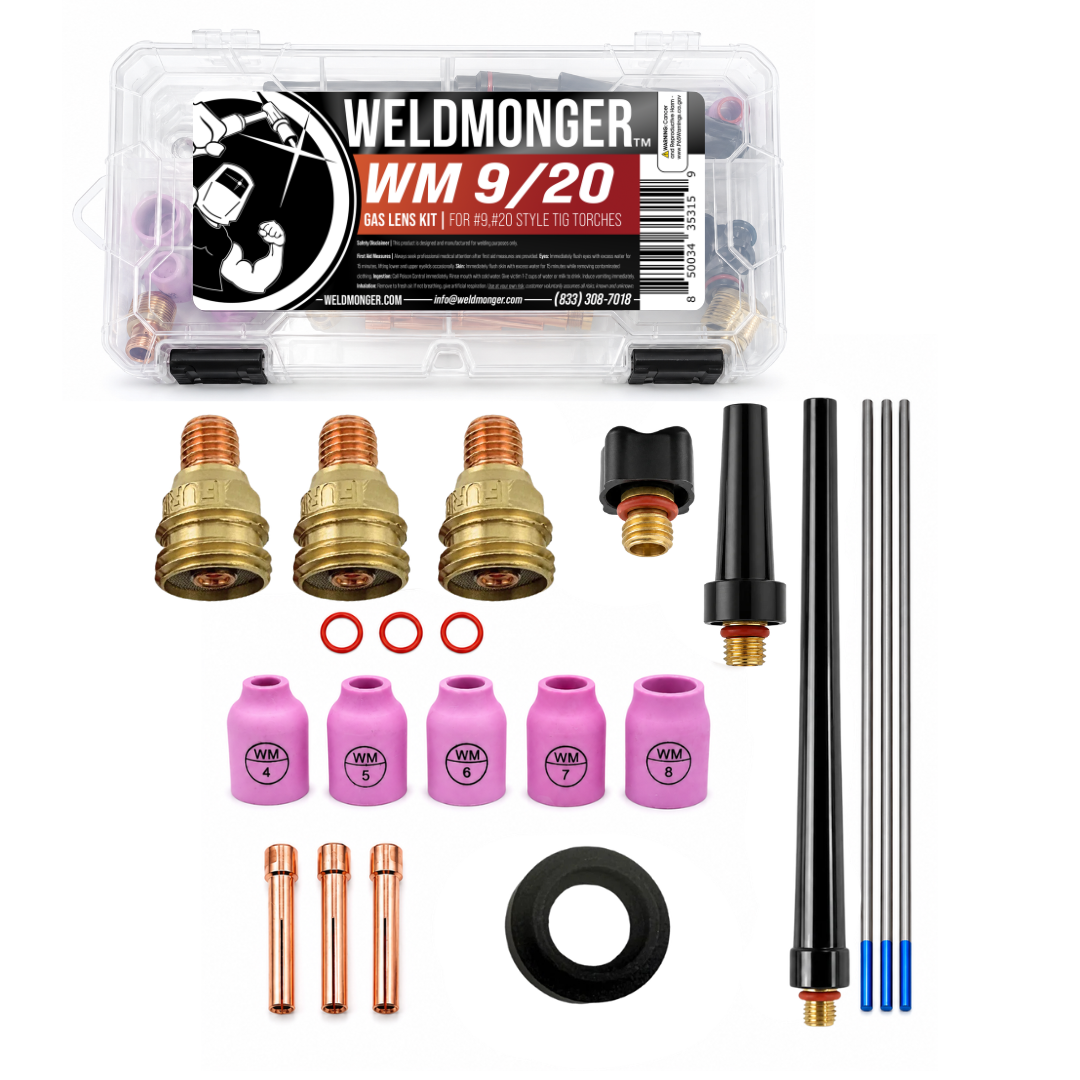

Kit Contents

• Furick gas lens collet bodies
• Collets in:
  • 1.6mm (1/16")
  • 2.4mm (3/32")
  • 3.2mm (1/8")
• Aluminium cups:
  • #4
  • #5
  • #6
  • #7
  • #8
• Short back cap
• Medium back cap
• Long back cap
• 2% Lanthanated Tungsten Electrodes:
  • 1.6mm
  • 2.4mm
  • 3.2mm
• O-rings

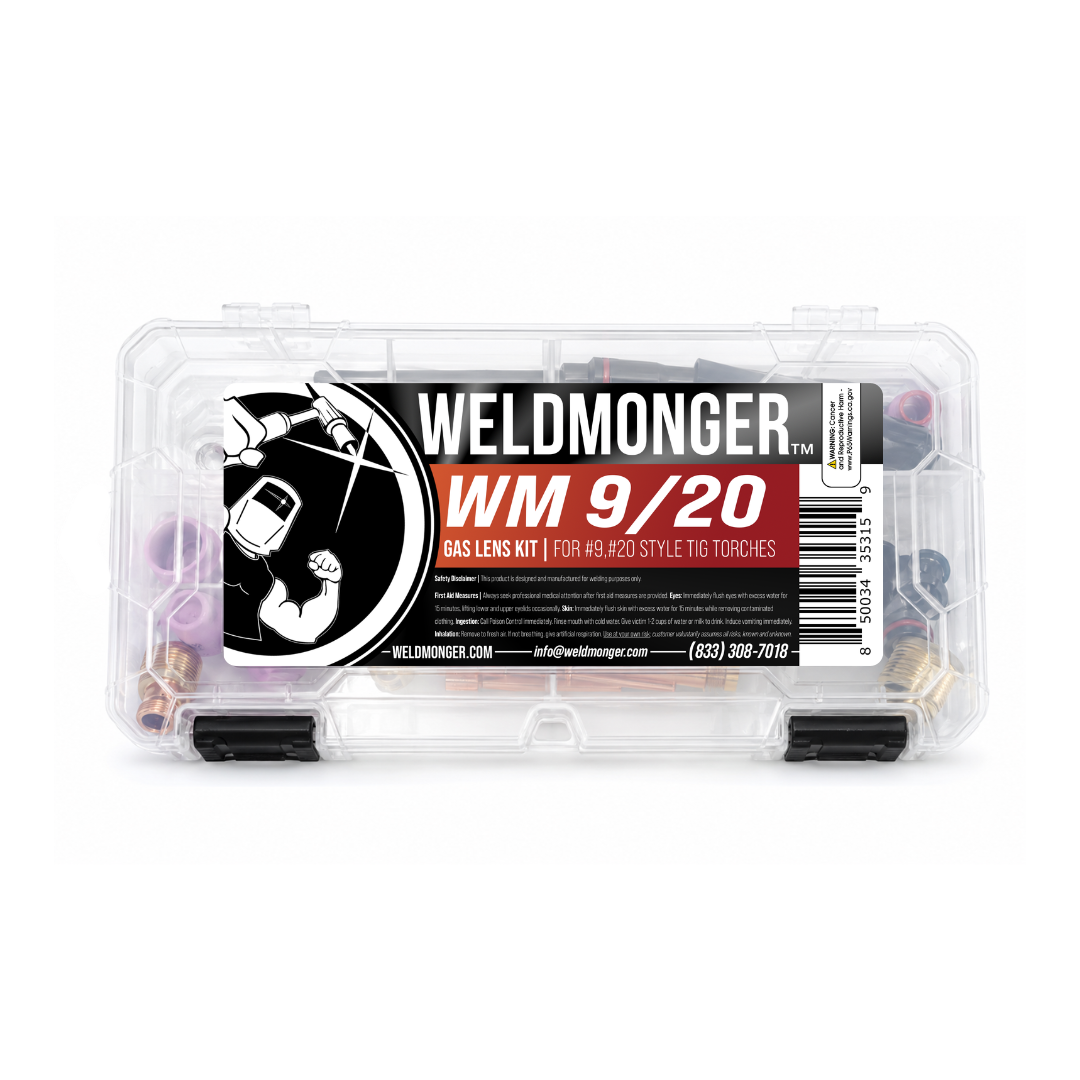

• Durable storage case

What Torch Series Do I Have?

2 Series (#9 / #20)

Compatible with many popular torches including:

9, 20, 100, 110, 130, 200, 230FL2L, CKM230, CWH230, WCM230 and other equivalent models from Weldcraft®, Lincoln®, WeldTec® and Profax®.

Using a #17, #18 or #26 Torch?

This kit will not fit 3 Series torches.

If you have a #17, #18 or #26 torch, you'll need our Stubby Gas Lens Kit instead.

Compatible 3 Series torches include:

17, 18, 26, 150, 210, 300, 510, Trimline, FL3L, CKM350, CWHTL300, CWH350, WCM350 and equivalent models from Weldcraft®, Lincoln®, WeldTec® and Profax®.

Need help identifying your torch? Contact the Weldmonger team and we'll help you find the right consumables.
